Pyraser Landbrauerei invests in a KHS glass bottle filler

Low Innofill Glass DRS consumption figures convincing

Pyraser Landbrauerei

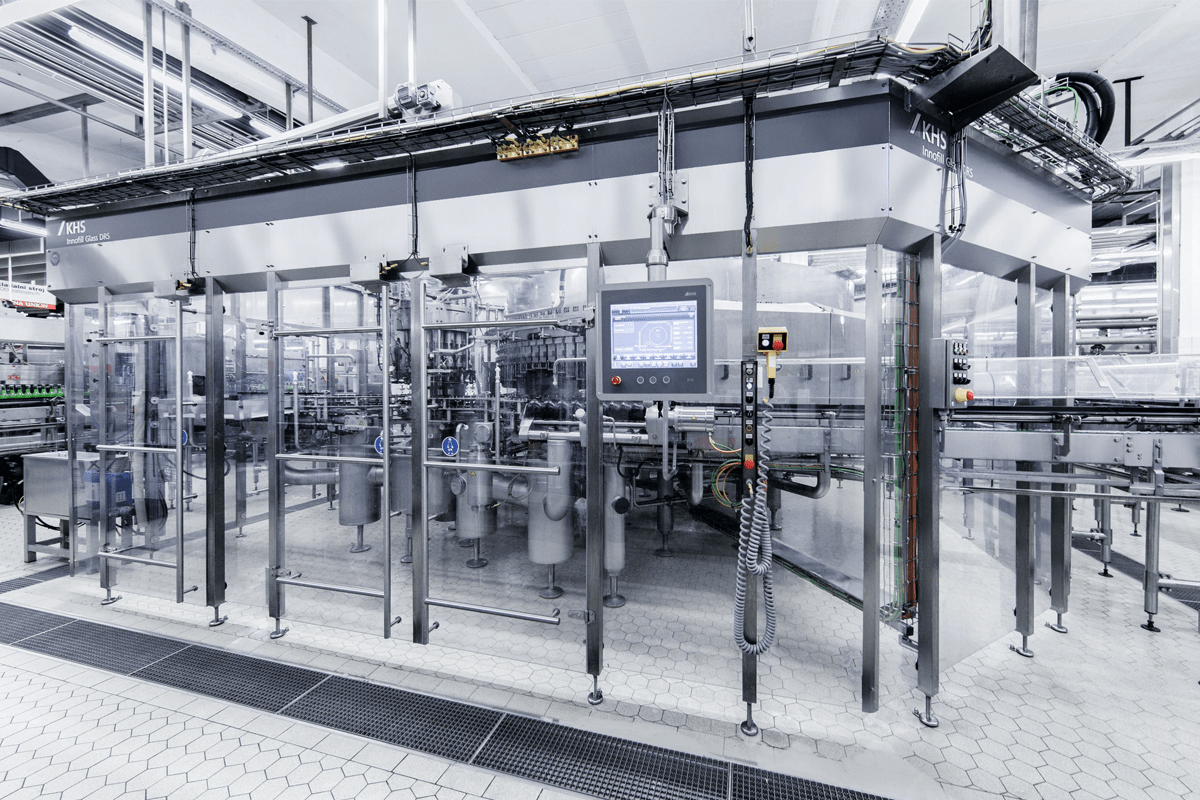

Innofill Glass DRS: Pyraser Landbrauerei has gradually renewed its bottle cellar and in the process invested in a KHS Innofill Glass DRS glass bottle filler. Photo - KHS

Like the KHS Group, Pyraser Landbrauerei from the Franconia region of Germany looks back on a turbulent company history – one that began at practically the same time as KHS’. The success story of the Dortmund specialist for filling and packaging systems started in 1868. Just two years later, Pyraser launched its first country beers to the local market. About 150 years on, the two traditional companies are now writing history together, with the Landbrauerei investing in an efficient, automated glass filler from KHS.

Seven days from ingress to production start was the clear instruction from Pyraser Landbrauerei – one that KHS followed to the letter. “It was successful open-heart surgery where nothing was allowed to go wrong,” smiles master brewer Helmut Sauerhammer. The brewery had gradually renewed its bottle cellar and, in the process, investing in a KHS Innofill Glass DRS glass bottle filler. Among other aspects, the decision-makers at the Franconian brewery were quickly convinced by the machinery’s consumption values and the low-oxygen filling process so essential when bottling beer. The patented KHS DRS-ZMS filling system uses just 210 grams of CO2 per hectoliter of beer. “We need a lot less carbon dioxide than the usual quantity common to the market to yield the same or even better residual oxygen values,” states Mike Herrmann, KHS sales Germany and the man responsible for the project.

Pyraser Landbrauerei
Pyraser Landbrauerei fills up to 26,000 bottles an hour – with Pyraser Landbier, among other beverages. Photo – Pyraser Landbrauerei

Another special feature at the country brewery is that Pyraser closes its beer bottles with aluminum caps. Because of this and the greater volume, more oxygen would normally be pressed into the bottle compared to the amount required with classic crown corks; this would be detrimental to the beer as the product would age more rapidly. To minimize oxygen pickup, the KHS glass filler, therefore, blasts the aluminum roll-on caps with CO2 in the capper. This joint development with the brewery means that the bottle’s very good oxygen values are the same as those for crown corks.

Efficiency boosted by automated CIP caps

Furthermore, the Innofill Glass DRS works with automatic clean in process (CIP) caps. “On the one hand, cleaning is considerably simplified as a lot less effort is needed for operation. On the other, the time saved as a result boosts efficiency in production,” Sauerhammer says. The number of manual interventions is reduced, as are toolless format changeovers thanks to hygienic Quicklock fast-acting locks. The program is automatic and operated at the press of a button. Up until now, employees had to place the CIP caps on the filling valves by hand. Cleaning processes can now be preset for specific times. They start automatically, with no manual intervention necessary. Any potential contamination of the filler, as could be the case where CIP caps are applied manually, is also prevented.

Water consumption significantly reduced

The new investment is also convincing about sustainability. With its separate cooling circuit the ECO vacuum pump significantly reduces water consumption, meaning that Pyraser Landbrauerei uses only 80 liters an hour instead of the previous 800.

All those involved in the project are very pleased, for KHS kept to the instruction issued by Pyraser Landbrauerei: seven days from ingress to commissioning.

With the Innofill Glass DRS breweries profit from cutting-edge technology from the high-performance range and from a structured machine design which considerably facilitates both operations and the entire production process. Pyraser Landbrauerei fills up to 26,000 bottles of beer or a maximum of 24,000 bottles of soft drinks per hour – with no hitches whatsoever since commissioning, Sauerhammer claims. “I have never known the first filled product to be ready for sale as quickly as here. We’re delighted!”
